Connect

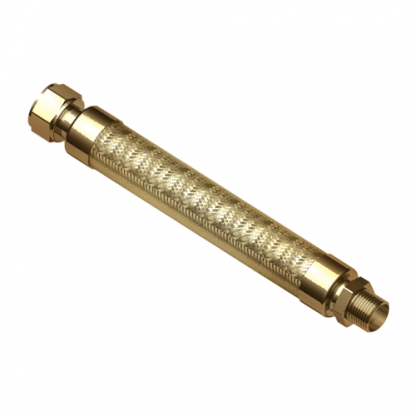

Flexible Connector for Electrical Lines

The Flexible Connector for Electrical Lines has as main objective interconnect the underground electric lines to the dispenser, monitoring system, among others. It is designed to absorb slight ground movements, preventing further damage to other equipment and pipes.

The Zeppini Ecoflex Flexible Connector is an explosion-proof equipment, which provides the necessary safety for the electrical installation. The equipment features an external mesh that ensures protection for the inner corrugated pipe and it is available in different lengths and diameters in BSPT, BSP, and NPT threads, for installations with the most different characteristics.

table bottom

Models Available

Code

Description

Material

Dimension

91000200178

Flexible connector for electric lines

Tomback

1/2’’ MF x 30cm x 1/2" FG

91000200179

Flexible connector for electric lines

Tomback

3/4’’ MF x 30cm x 3/4" FG

91000200177

Flexible connector for electric lines

Tomback

1’’ MF x 30cm x 1" FG

91000200187

Flexible connector for electric lines

Tomback

1/2’’ MF x 40cm x 1/2" FG

91000200194

Flexible connector for electric lines

Tomback

3/4’’ MF x 40cm x 3/4" FG

91000200180

Flexible connector for electric lines

Tomback

1’’ MF x 40cm x 1" FG

91000200188

Flexible connector for electric lines

Tomback

1/2’’ MF x 50cm x 1/2" FG

91000200195

Flexible connector for electric lines

Tomback

3/4’’ MF x 50cm x 3/4" FG

91000200181

Flexible connector for electric lines

Tomback

1’’ MF x 50cm x 1" FG

91000200189

Flexible connector for electric lines

Tomback

1/2’’ MF x 60cm x 1/2" FG

91000200196

Flexible connector for electric lines

Tomback

3/4’’ MF x 60cm x 3/4" FG

91000200182

Flexible connector for electric lines

Tomback

1" MF x 60cm x 1" FG

91000200190

Flexible connector for electric lines

Tomback

1/2" MF x 70cm x 1/2" FG

91000200197

Flexible connector for electric lines

Tomback

3/4’’ MF x 70cm x 3/4" FG

91000200183

Flexible connector for electric lines

Tomback

1" MF x 70cm x 1" FG

91000200191

Flexible connector for electric lines

Tomback

1/2" MF x 80cm x 1/2" FG

91000200198

Flexible connector for electric lines

Tomback

3/4’’ MF x 80cm x 3/4" FG

91000200184

Flexible connector for electric lines

Tomback

1’’ MF x 80cm x 1" FG

table top

Differentials

It ensures the safety and versatility of the system, absorbing ground movements.

Available in different sizes, for use with the most diverse installation requirements.

Available in NPT, BSP and BSPT threads.

Produced and certified for use in classified areas.
